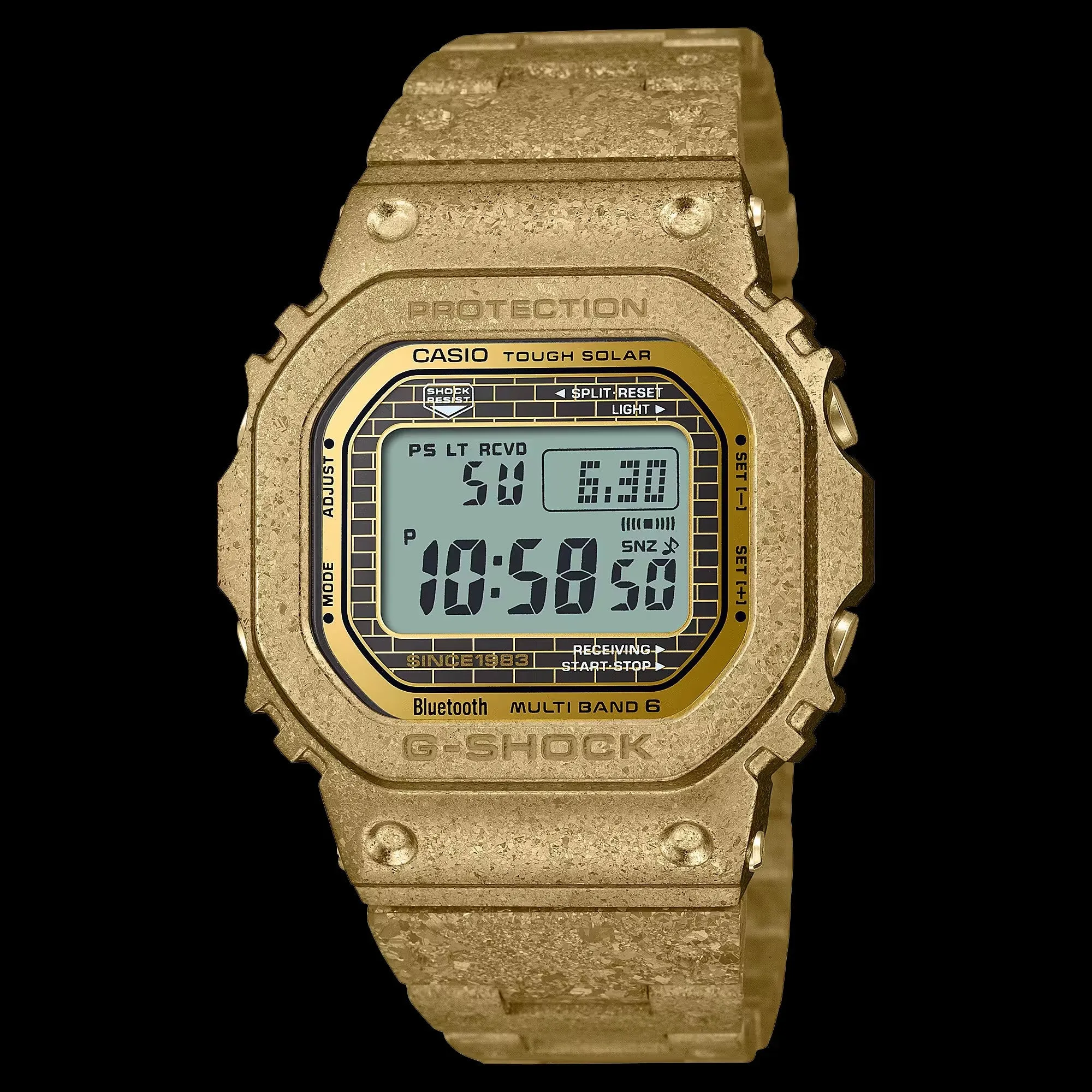

Following recrystallization and deep-layer hardening, the bezel and band are treated with gold ion plating and the screw-lock case back with DLC coating for a bold, radiant look. In a special nod to the DW5000, the dial features the phrase “SINCE 1983.”

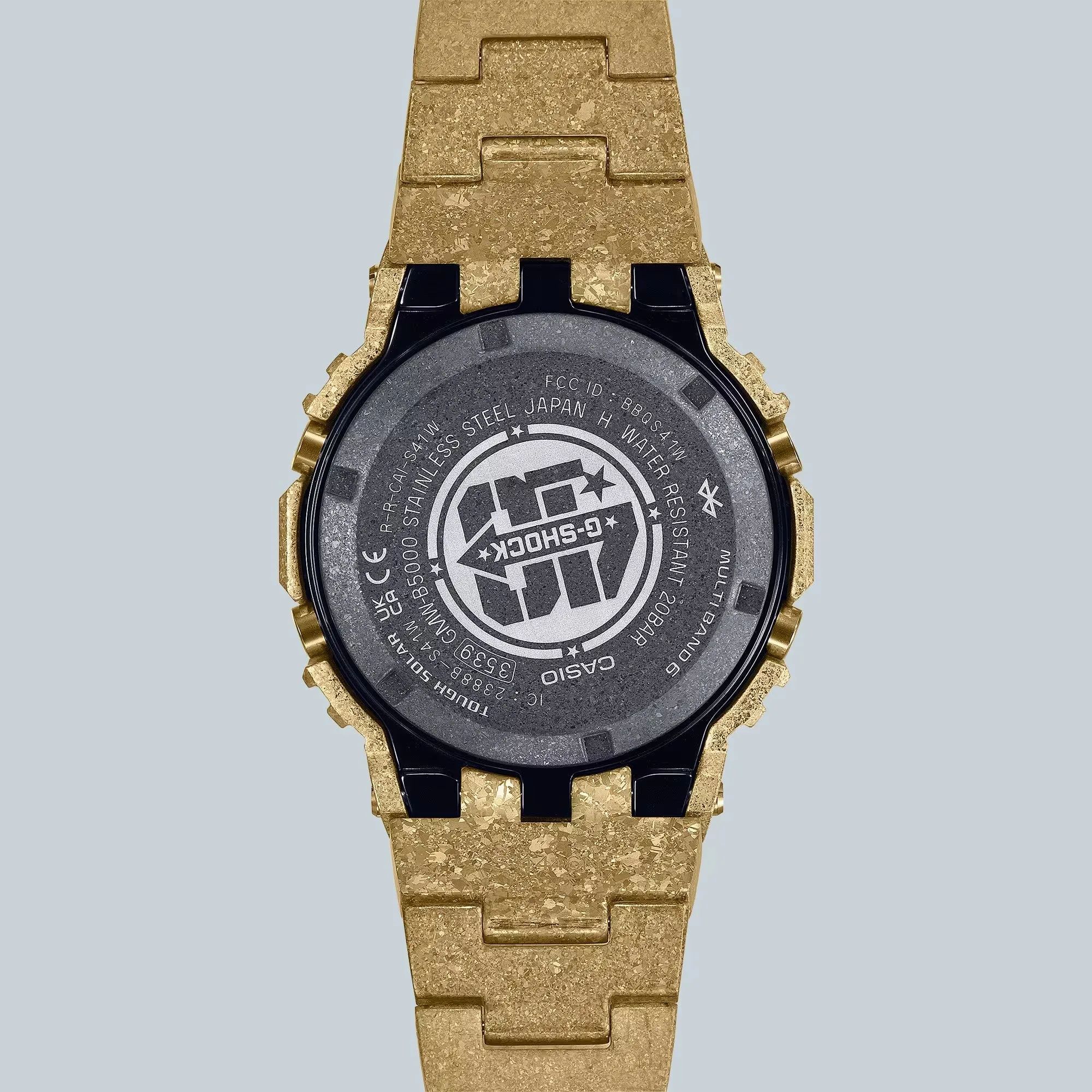

The case back is engraved with the Eric Haze-designed 40th logo, and the lower left button is engraved with a star, for a timepiece that crystallizes the G-SHOCK 40th anniversary celebration.

*The stainless steel is processed into components and then recrystallized, yielding unique differences in crystalline grain. This makes the pattern, color tone, and luster differ subtly from part to part.

Basic Information

• Case size (L× W× H)

  49.3 × 43.2 × 13 mm

• Weight

  167 g

• Case and bezel material

  Stainless steel

• Band

  Solid Band
  Stainless Steel Band
  One-touch 3-fold Clasp

• Construction

  Shock Resistant

• Water resistance

  200-meter water resistance

• Time adjustment

  Radio-controlled Watch; Multi band 6

• Power supply and battery life

  Tough Solar (Solar powered)

Smartphone Link/App Connectivity Features

• Smartphone Link feature

  Mobile link (Wireless linking using Bluetooth®)

• Apps

  CASIO WATCHES

• App connectivity feature

  Auto time adjustment
  Easy watch setting
  Approximately 300 world time cities user-added point
  Time & place
  Reminder
  Phone finder

Exterior

• Glass

  Mineral Glass

• Back plate

  Screw Lock Back

• Surface treatment

  Gold ion plated case
  Gold ion plated band
  AIP®(Arc Ion Plating) Ion Plating

• Compatible band size

  150 to 205 mm

Watch Features

• World time

  5 World time
  39 time zones (39 cities coordinated universal time), auto summer time (DST) switching, home city/world time city swapping

• Stopwatch

  1/100-second stopwatch
  Measuring capacity: 00'00''00~59'59''99 (for the first 60 minutes)
  1:00'00~23:59'59 (after 60 minutes)
  Measuring unit: 1/100 second (for the first 60 minutes)
  1 second (after 60 minutes)
  Measuring modes: Elapsed time, split time, 1st-2nd place times

• Timer

  Countdown timer
  Measuring unit: 1 second
  Countdown range: 24 hours
  Countdown start time setting range: 1 second to 24 hours (1-second increments, 1-minute increments and 1-hour increments)

• Alarm/hourly time signal

  5 daily alarms (with 1 snooze alarm)
  Hourly time signal

• Light

  LED backlight (Super illuminator) Full auto LED light, selectable illumination duration (2 seconds or 4 seconds), afterglow

• Light color

  LED:White

• Calendar

  Full auto-calendar (to year 2099)

• Mute feature

  Button operation tone on/off

• Energy saving feature

  Power Saving (display goes blank to save power when the watch is left in the dark)

• Battery display/alert

  Low battery alert

• Run time

  Approx. battery operating time:
  10 months on rechargeable battery (operation period with normal use without exposure to light after charge)
  22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)

• Accuracy

  Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)

• Other features

  12/24-hour format
  Date/month display swapping
  Day display (days of the week selectable in six languages)
  Regular timekeeping: Hour, minute, second, pm, month, date, day

• Time adjustment details

  Time Calibration Signals
  Station name: DCF77 (Mainflingen, Germany)
  Frequency: 77.5 kHz
  Station name: MSF (Anthorn, England)
  Frequency: 60.0 kHz
  Station name: WWVB (Fort Collins, United States)
  Frequency: 60.0 kHz
  Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
  Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
  Station name: BPC (Shangqiu City, Henan Province, China)
  Frequency: 68.5 kHz
  Time calibration signal reception
  Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
  *5 times a day for the Chinese calibration signal
  Manual receive
  The latest signal reception results
